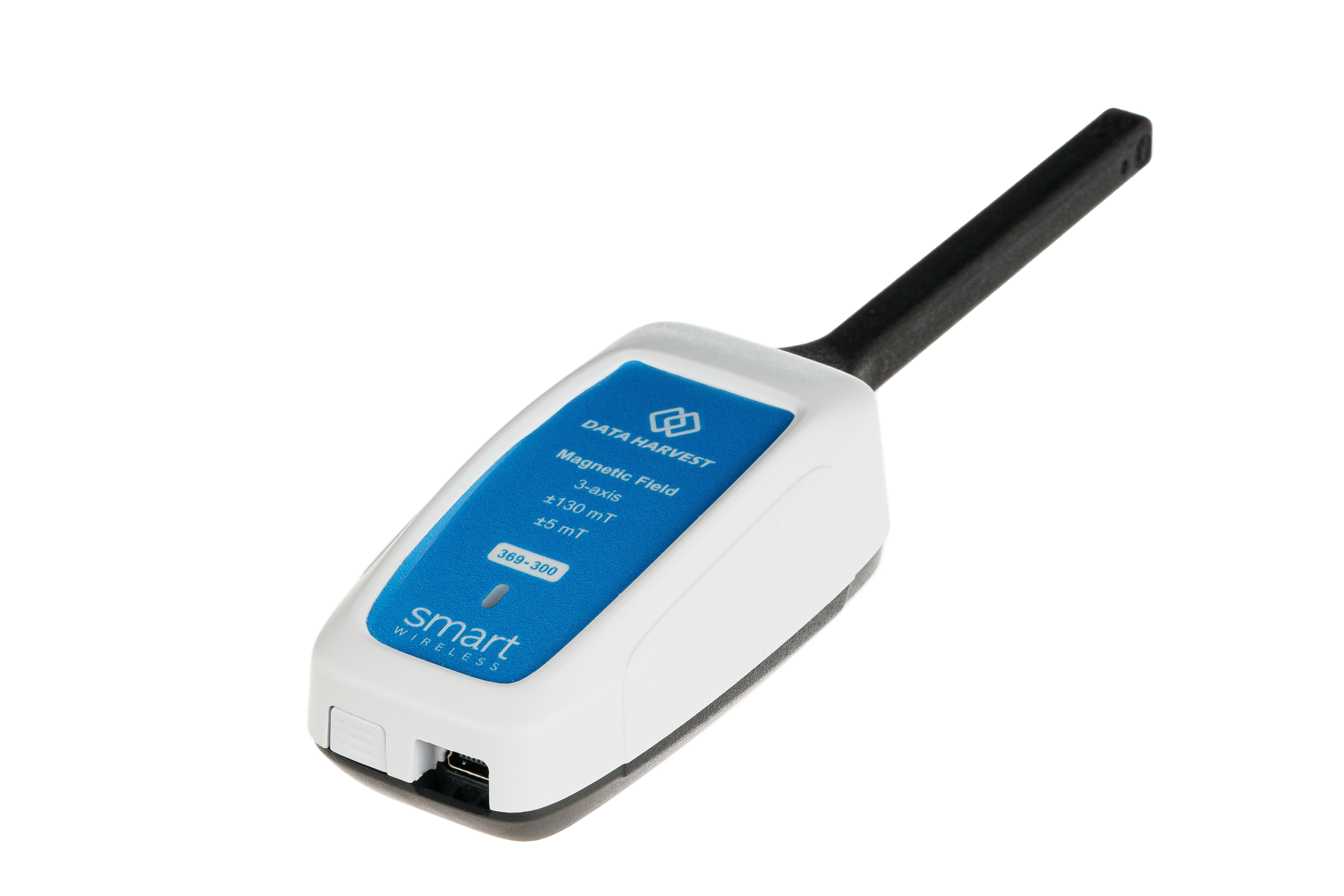

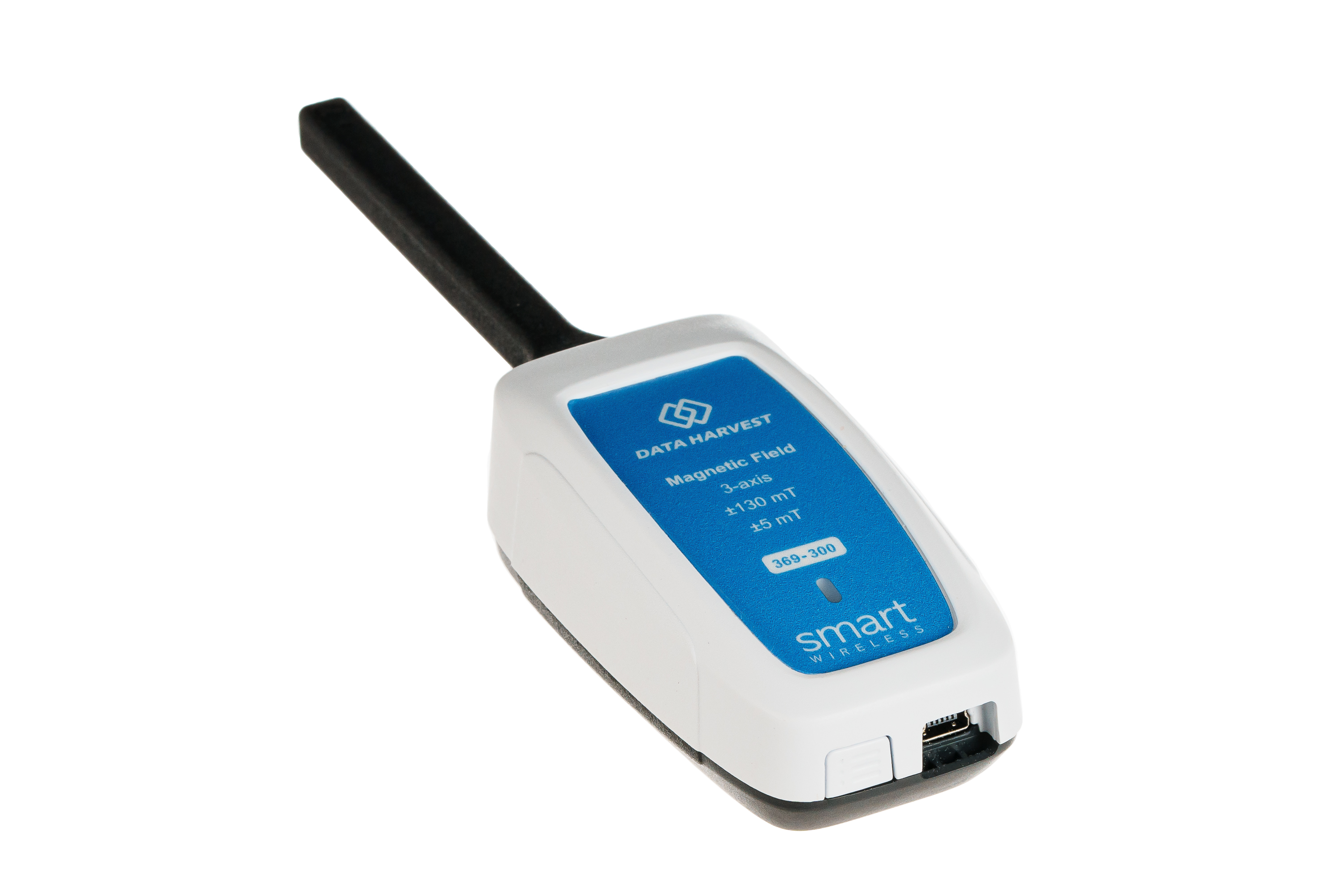

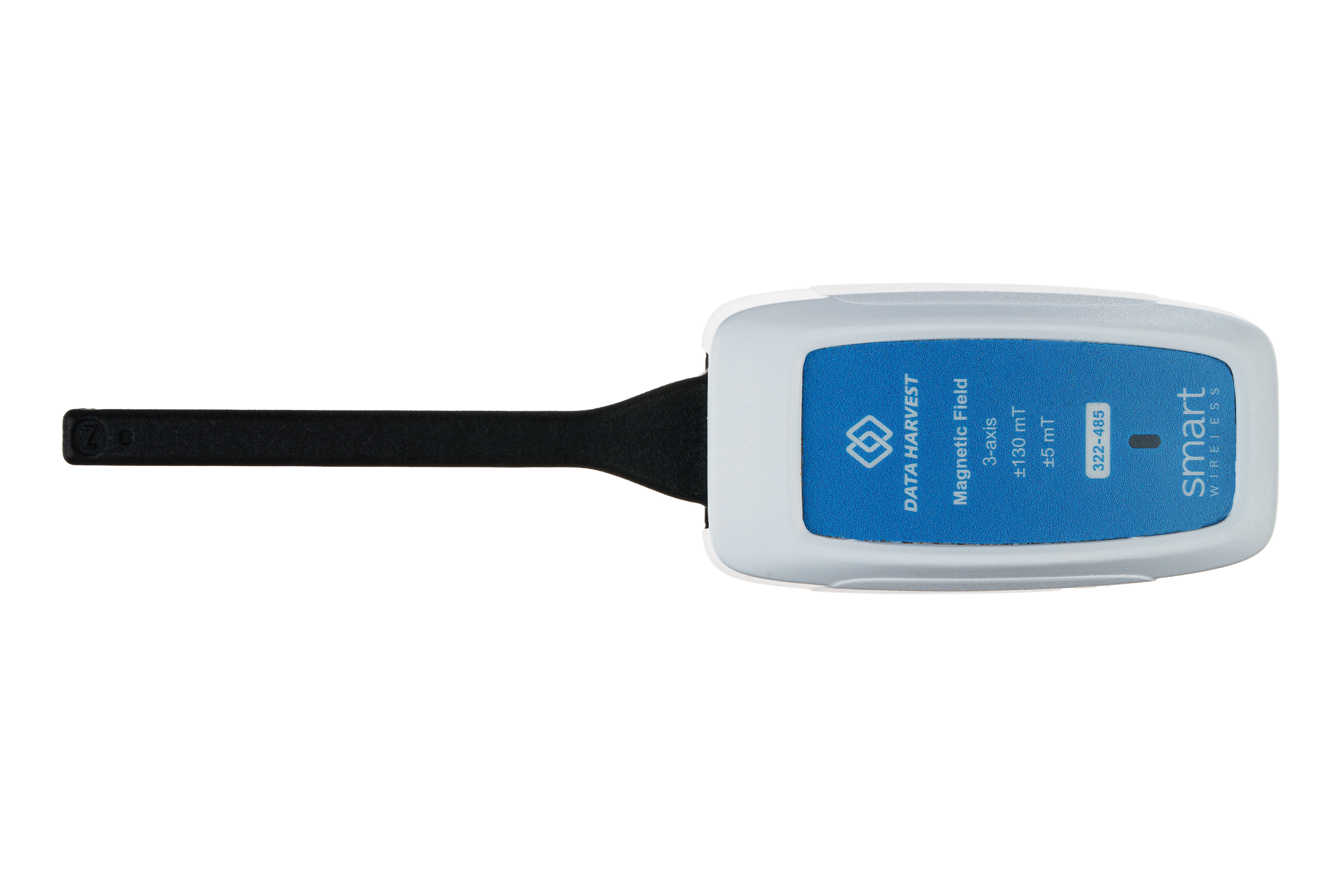

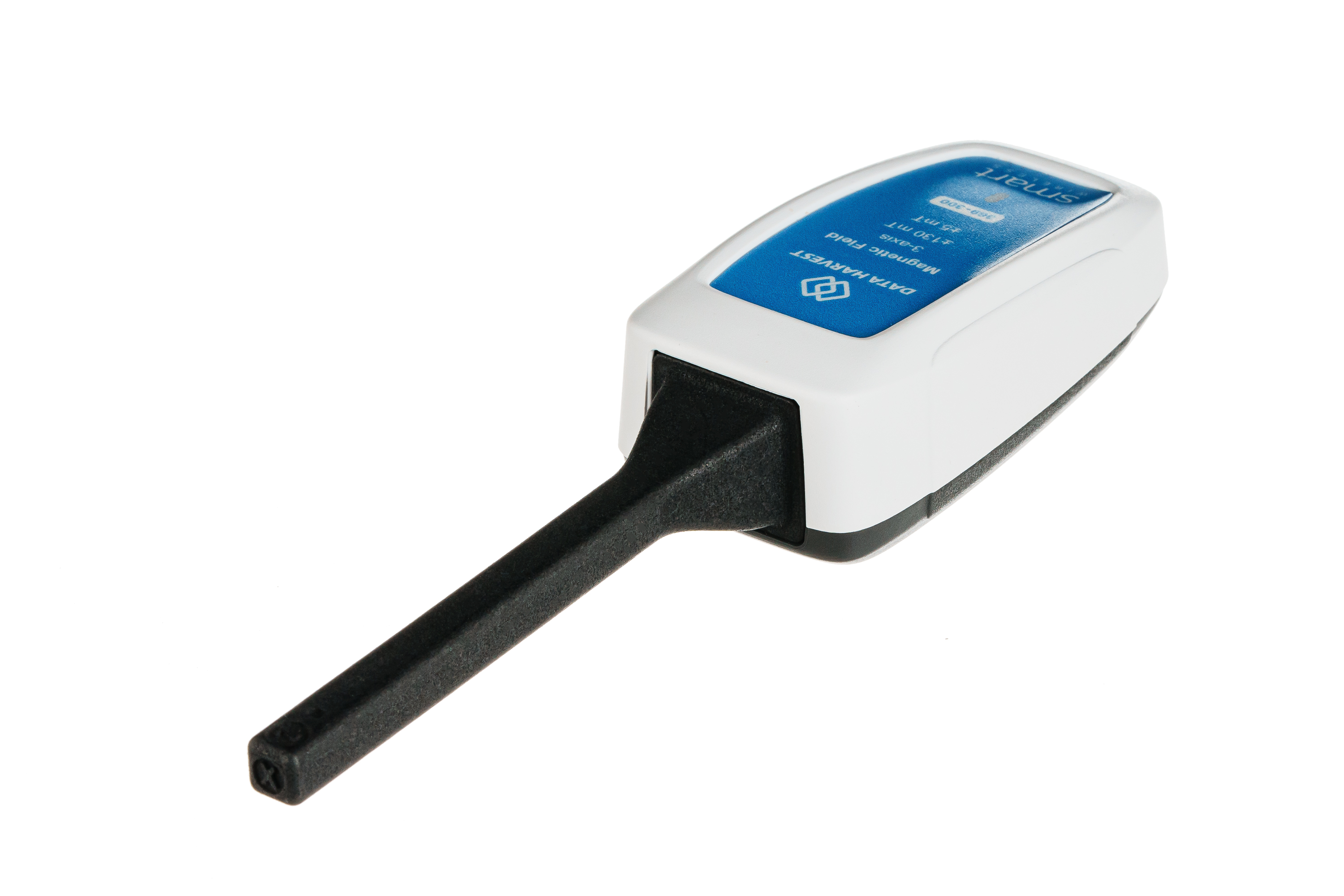

Data Harvest Wireless Magnetic Field Sensor

Home Data Harvest Wireless Sensors

Data Harvest Wireless Magnetic Field Sensor

Order No: 1140



Explore the nature and strengths of magnetic fields of solenoids and permanent magnets with this robust sensor!

The Wireless Magnetic Field Strength Sensor is very practical and well-designed tool to explore electromagnetism and magnetic fields.

You may, for example, wish to show how magnetic flux varies depending on how it is measured and under what conditions.

Portable yet highly adaptable, this sensor helps unpack the relationships that exist between magnetic field, the environment and the electrical sources that can produce it.



  • Portable hand-held design
  • Great resolution and response
  • Directional indicators engraved on the sensor’s probe
  • Bluetooth and USB connectivity
  • Long battery life
  • Quick to use inside the classroom
  • Independent logging
  • 5 Year warranty
  • Lifetime support


Features

  • Measurement Ranges:
    • ±5 mT and ±130 mT 3 channels, for the measurement of magnetic field in X, Y and Z directions
    • Note: The ±5 mT range has an absolute measurement span of ± 4.6 mT to ±5.2 mT. This is unique to each sensor and cannot be adjusted
  • Accuracy: ±5% of reading
  • Resolution:
    • 0.1 mT on ±130 mT device
    • 0.15 µT sensitivity on ±5 mT device
  • Maximum magnetic field stress rating: 1,000 mT (1 T), above this level may cause permanent damage
  • Fastest logging speed:
    • ±5 mT range: interval of 10 ms gives 100 samples per second
    • ±130 mT range: interval of 1 ms gives 1,000 samples per second
  • Connectivity: Wired via USB / Wireless via Bluetooth
  • Internal Battery: Rechargeable internal lithium-ion 3.7 V
  • Storage/Operating Temperature: 0 to 40 ̊C
  • Physical Specifications:
    • Weight: approx. 85 g
    • External dimensions: approx. height 33 mm x width 50 mm x length 195 mm
