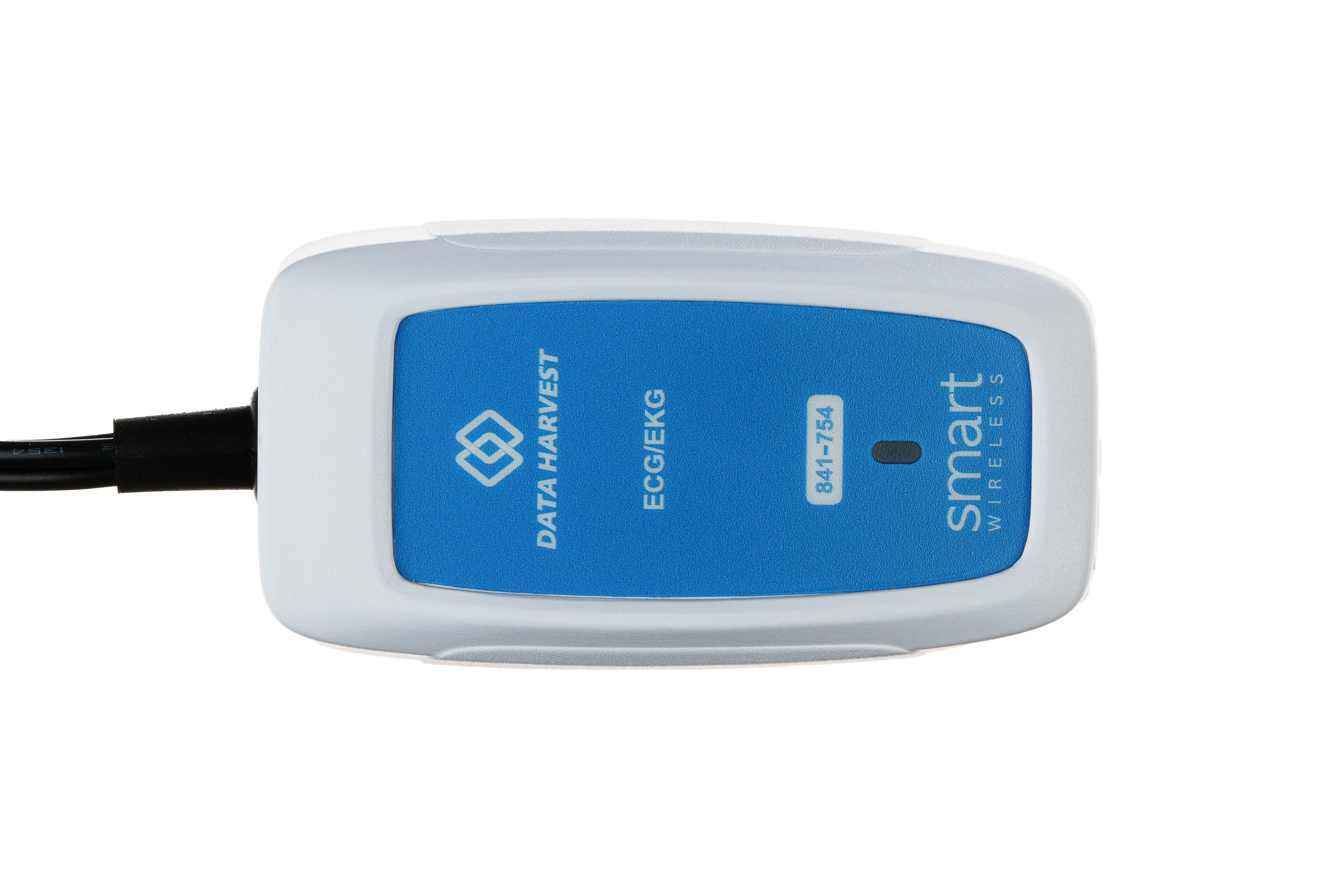

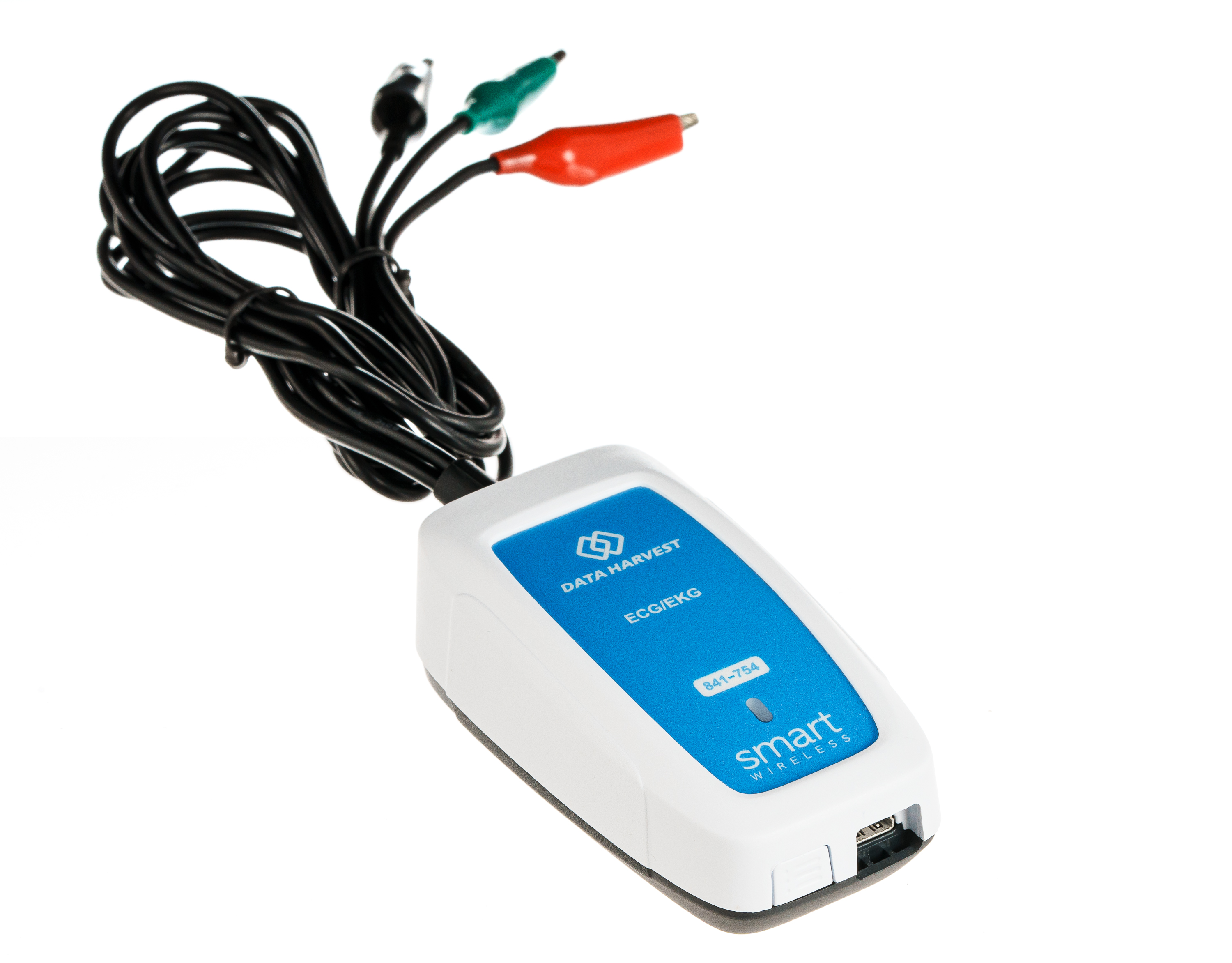

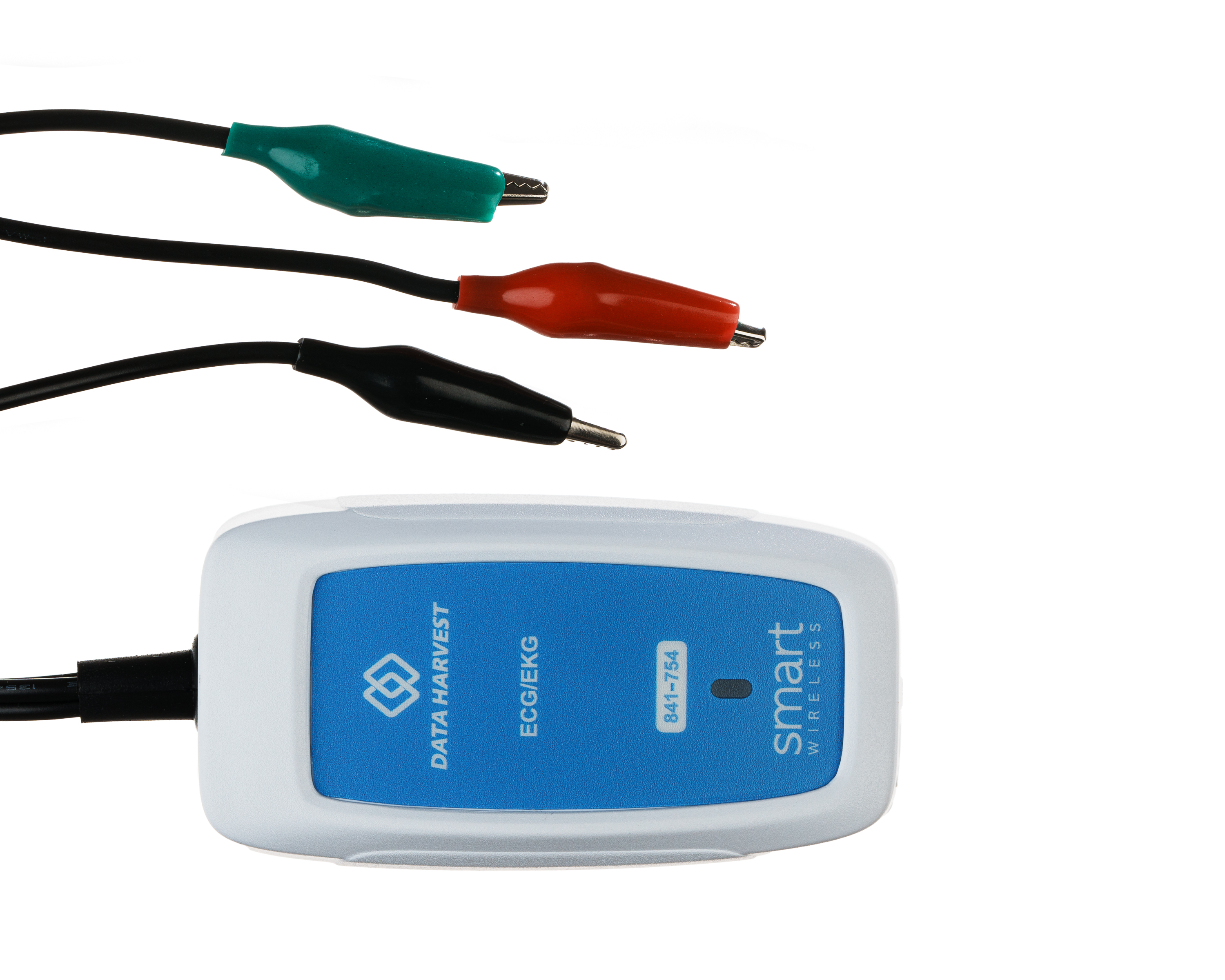

Data Harvest Wireless EKG / ECG Sensor

Data Harvest Wireless EKG / ECG Sensor

Order No: 1158



Equipped with two sensor leads and one reference, the Wireless ECG/EKG Sensor is a powerful instrument to help bring cardiology to life.

With the ability to alter monitoring conditions and its hypo-allergenic design, this sensor helps appreciation of both basic heart function and experimental control in a safe yet enjoyable way.



  • Two electrodes (negative and positive) and single reference electrode
  • 100 ECG electrode patches supplied
  • Portable and compact
  • Bluetooth and USB connectivity
  • Long battery life
  • Quick to use inside the classroom
  • Independent logging
  • 5 Year warranty
  • Lifetime support


Features

  • Measurement Ranges: ECG Waveform, 200 to 4000 µV
  • Resolution: ±1 µV
  • Fastest logging speed: 500 µs (2 kHz)
  • Connectivity: Wired via USB / Wireless via Bluetooth
  • Internal Battery: Rechargeable internal lithium-ion 3.7 V
  • Storage/Operating Temperature: 0 to 40 ̊C
  • Physical Specifications:
    • Weight: approx. 130 g
    • External dimensions: approx. height 91 mm x width 49 mm x length 33 mm
