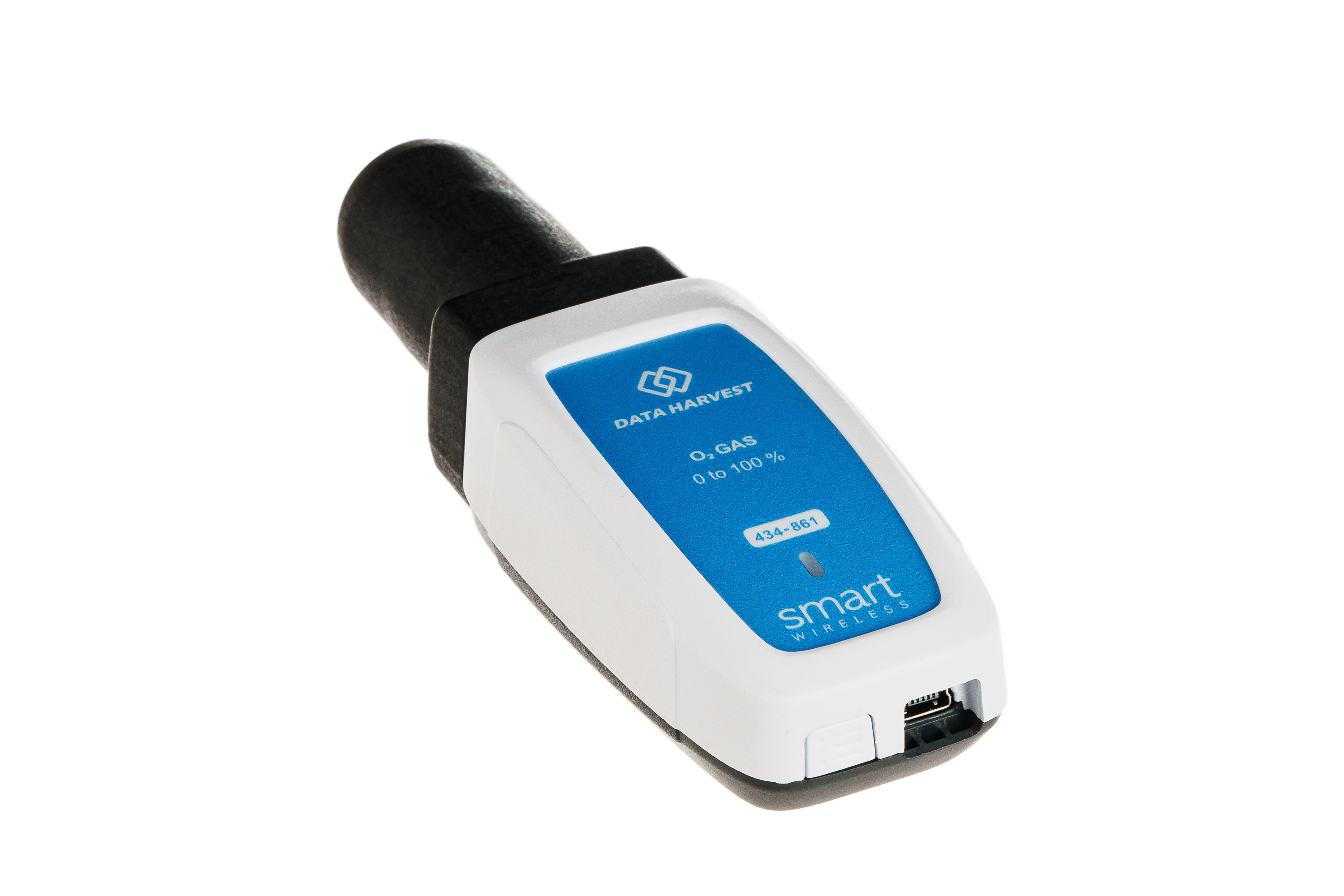

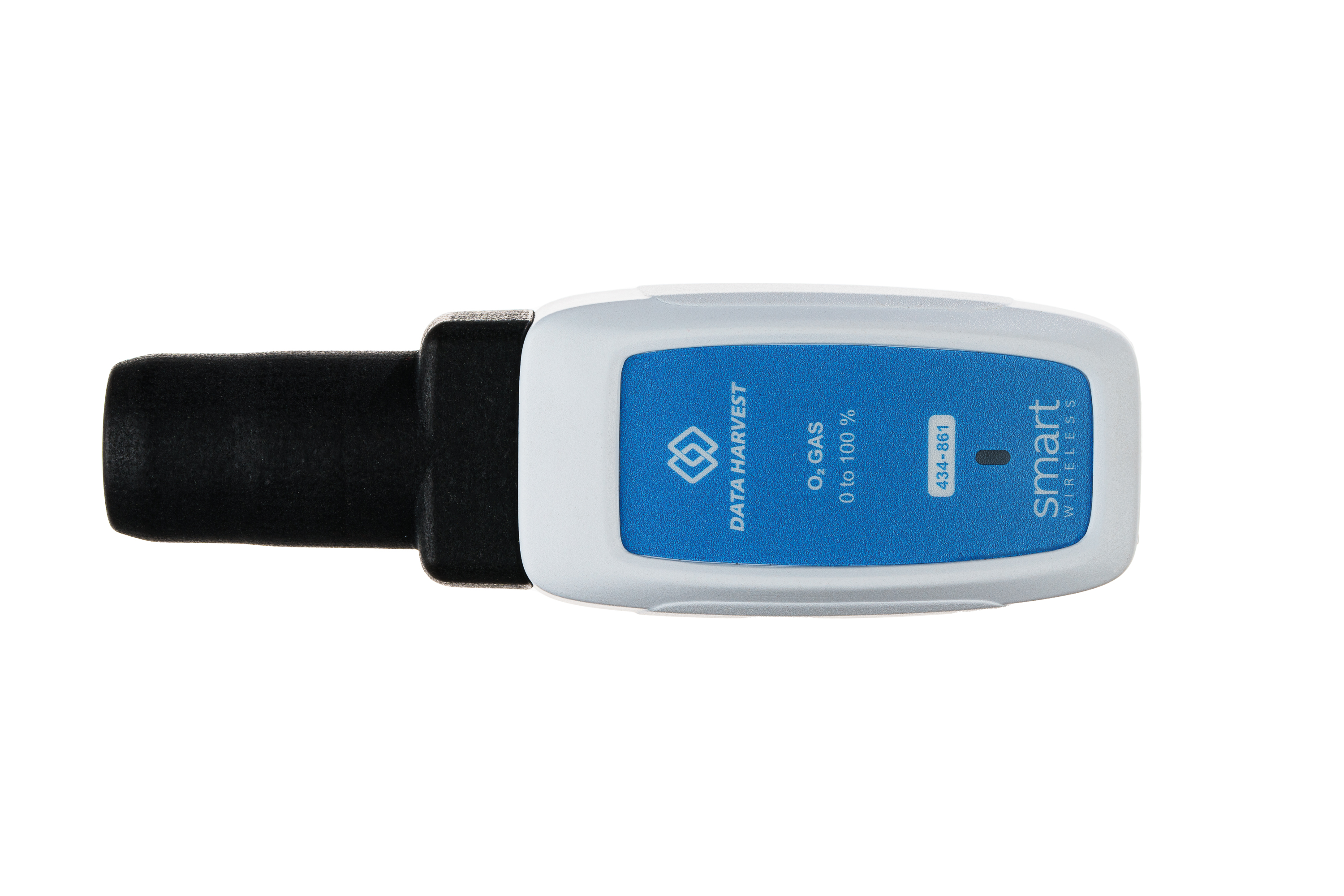

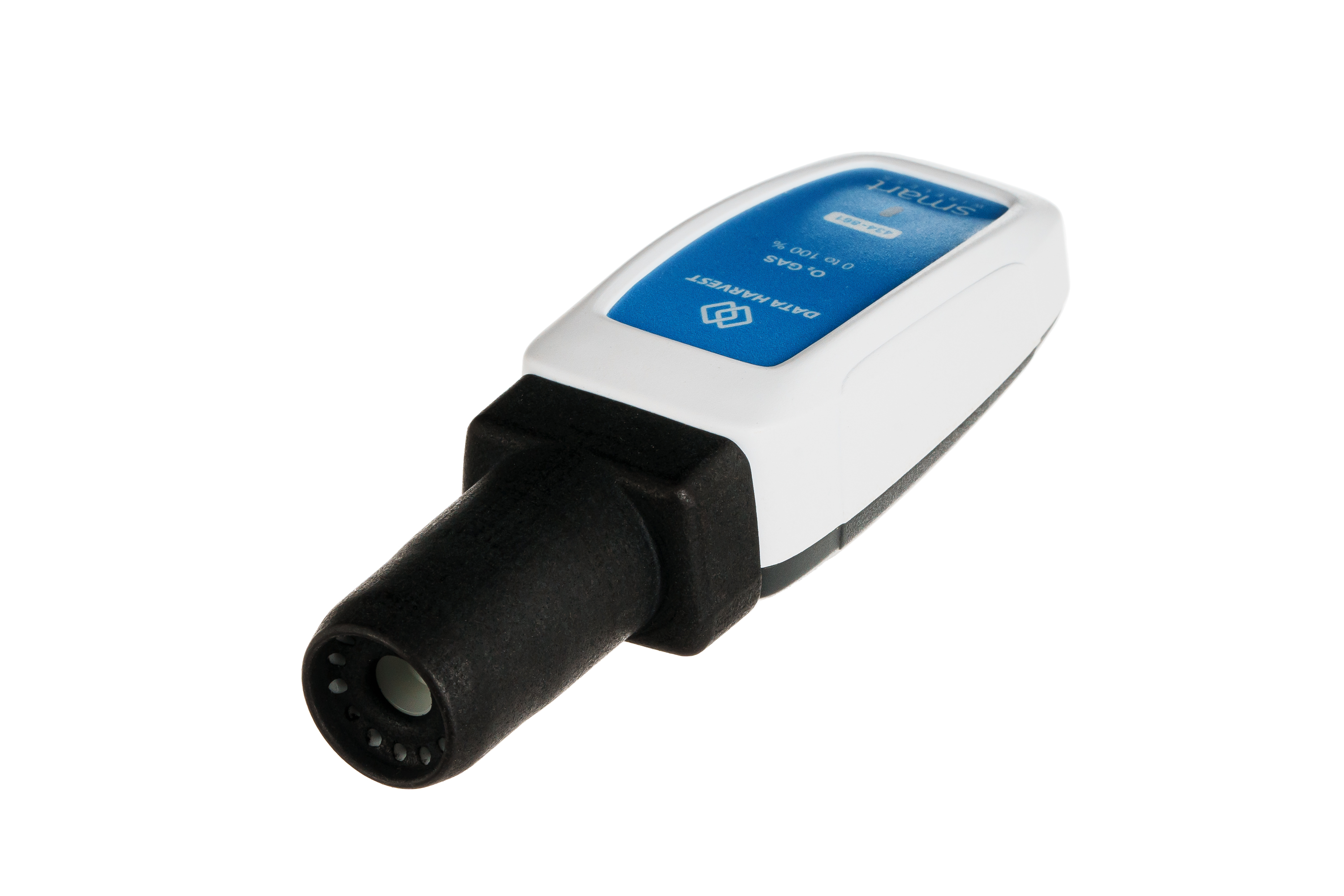

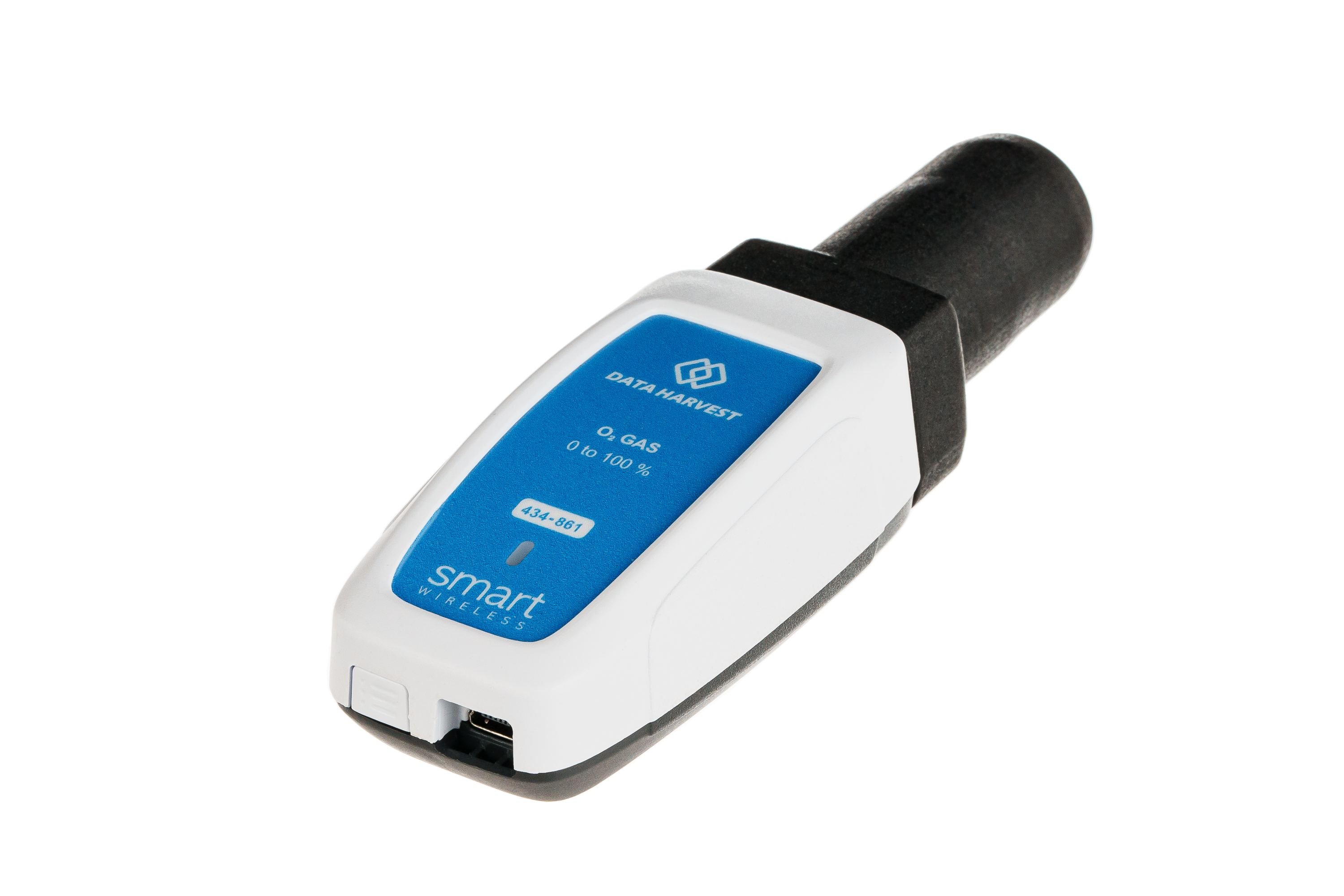

Data Harvest Wireless Oxygen In Air Sensor

Data Harvest Wireless Oxygen In Air Sensor

Order No. 1170



Oxygen concentration in the air is influenced by environmental conditions such as pressure and temperature. Life on earth influences and is influenced by the air’s oxygen concentration – so understanding it is of vital importance in biology and chemistry.

If you wish to measure how O2 concentration varies in the classroom, follow photosynthesis or the respiration of organisms – then this is a key sensor.

With the built-in pressure, relative humidity, and temperature - environmental measurements become possible. The Oxygen in Air Sensor integrates key analytical measurements along with biology and environmental science into one package.



  • Durable, built with the classroom in mind!
  • Multi range O2, pressure, temperature, and humidity
  • Good resolution, range, and response
  • Dedicated salinity probe
  • Portable, hand-supportable design
  • Bluetooth and USB connectivity
  • Long battery life
  • Quick to use inside the classroom
  • Independent logging
  • 5 Year warranty
  • Lifetime support


Features

  • Measurement Ranges:
    • O2: 0 to 100 %
    • Temperature: -40 to 85̊ C
    • Pressure: 30 to 110 kPa
    • Humidity: 0 to 100 %RH
  • Resolution:
    • O2: 0.1%
    • Temperature: 0.1 ̊C
    • Pressure: 0.01 kPa
    • Humidity: 0.1%RH
  • Fastest logging speed 10 samples per second: [100ms]
  • Connectivity: Wired via USB / Wireless via Bluetooth
  • Internal Battery: Rechargeable internal lithium-ion 3.7 V
  • Storage/Operating Temperature: 0 to 40 ̊C
    • Physical Specifications:
    • Weight: approx. 115 g
    • External dimensions: approx. height 33 mm x width 50 mm x length 152 mm
