Science Lab Radioactivity RA (w/o. coun)

Science Lab Radioactivity RA (w/o. coun)

207 152SB:



Student experiment set of the student experiment system Science Lab in the field of physics. Set-up material for one working group in pre-formed tray. With the equipment set RA, in combination with the pancake GM counter tube (559012) and the Mobile-CASSY 2 WiFi (524 005W2) and the GM adapter M (524 440) or with the Counter S (575 471), more than 20 experiments at high school, college and basic university level for worldwide curriculums can be performed. The students deal with the topic radioactivity and in particular with the environmental radioactivity. While working out the curriculum required topics, they are also trained in communication and assessment skills. The additional possibility of using the Mobile-CASSY 2 WiFi (524 005W2) enables the students the access of digital learning.



Experimental topics:
Introduction to radioactivity
Investigation of the influence of the sample properties and the size of the measuring window
Environmental radioactivity
Statistics of radioactive decay
Screening of radiation
Distance
Investigation of the radiation in a magnetic field
Half-life



Features

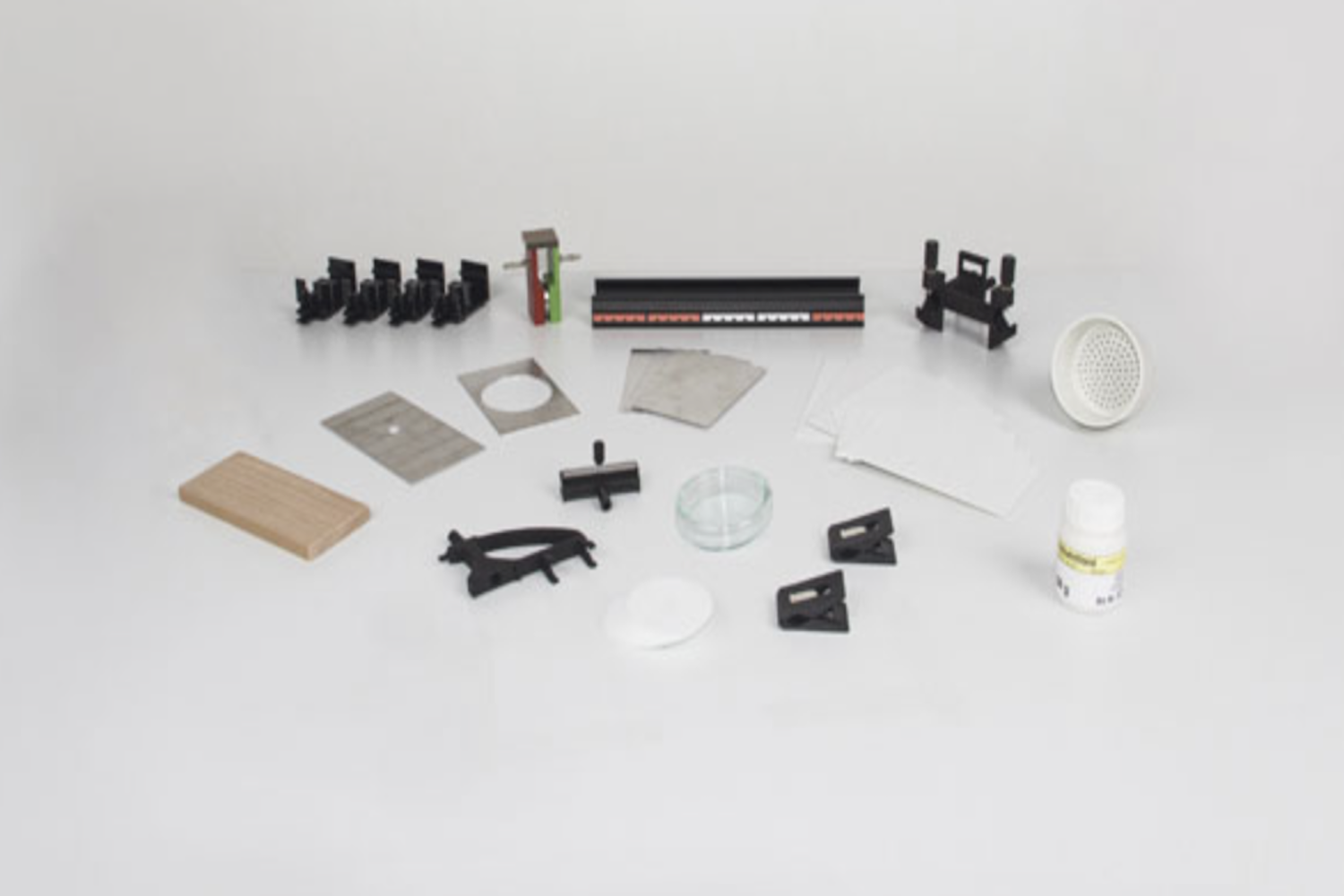

Scope of delivery:

1 459 30 Plate holder on rodLD
1 460 84 Precision metal rail, 25 cmLD
4 460 95 Clamp riderLD
1 510 20 Horseshoe magnet, smallLD
1 541 10 Buffer and Plastic PlateLD
1 559 015 Holder for Pancake GM counterLD
1 559 466 Holder for radiation emitter and magnetLD
1 647 001 Tray, lowLD
1 661 0306 Round filter, 55 mm diam, 25 piecesLD
1 664 181 Petri dish 60 mmLD
1 665 1615 Büchner funnel porcelain, for filters with 55 mm ØLD
1 686 666 Potassium Chloride 50 gLD
1 686 667 Frame and Set of Aluminium slidesLD
2 686 668 Plastic clamp, span 1.2 cmLD
