Science Lab Electrics EL3 (Set)

Science Lab Electrics EL3 (Set)

207 133S:

Student experiment set of the student experiment system Science Lab in the field of physics. Set-up material for one working group in pre-formed tray. With the equipment set EL3 more than 46 experiments at high school, college and basic university level for worldwide curriculums can be performed. The students deal with the topics electrical basic circuits and electrochemistry. While working out the curriculum required topics, they are also trained in communication and assessment skills. In combination with the Mobile-CASSY 2 WiFi (524 005W2), there are additional evaluation options which enable the students digital learning.

Experiment topics:
Circuits and switches
Electric measuring methods
Ohmic resistors
Special Resistors
Voltage sources
Electrical application circuits
Electrochemistry

Features

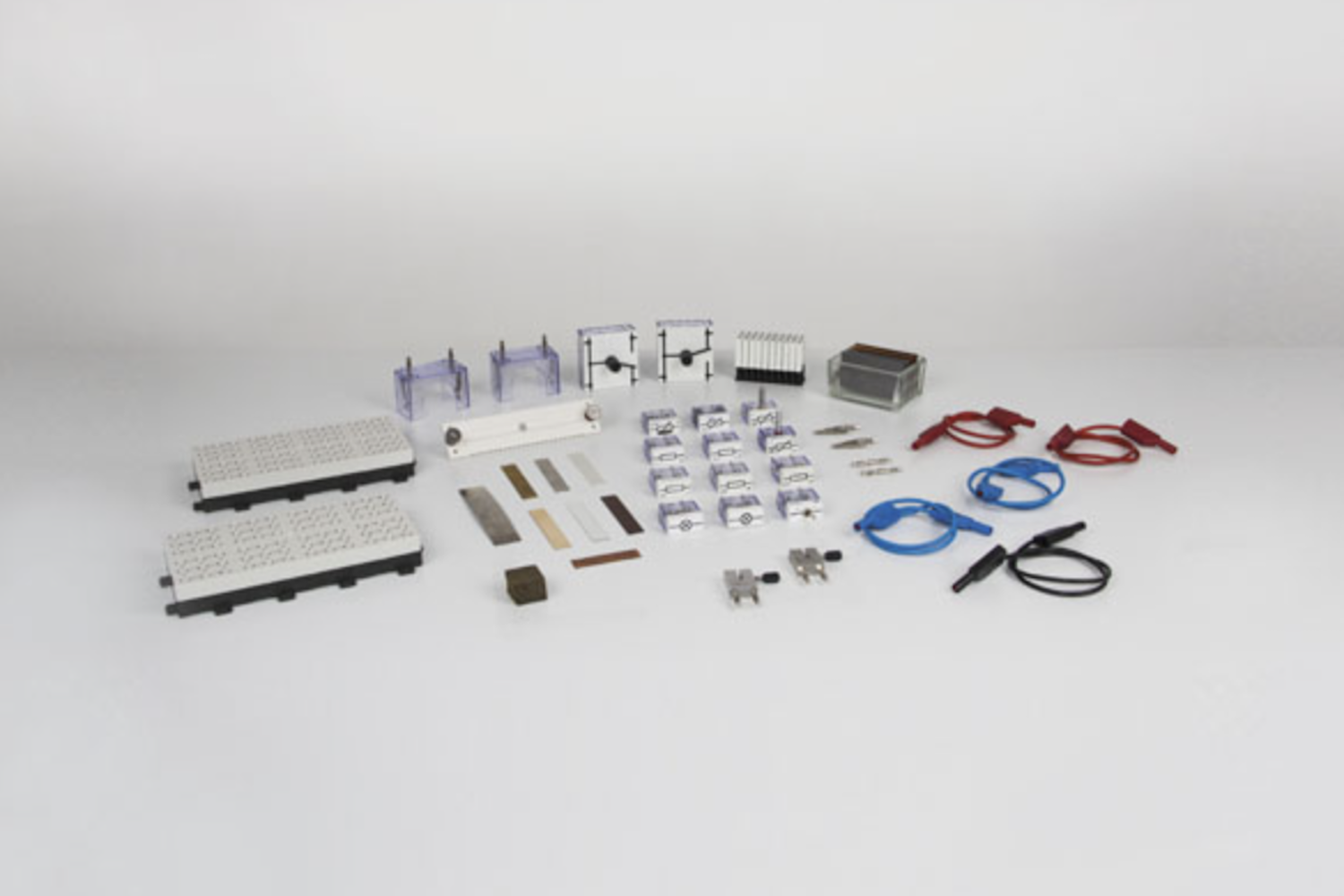

Scope of delivery:

2 340 89 Coupling plug 4 mmLD
1 381 311 Bimetallic stripLD
2 500 621 Safety experiment cable, 50 cm, redLD
2 500 622 Safety experiment cable, 50 cm, blueLD
1 500 624 Safety experiment cable, 50 cm, blackLD
1 501 48 Bridging plugs STE 2/19, set of 10LD
1 501 85 Adapter 4-mm plug/4-mm socketLD
2 501 86 Crocodile clip, polishedLD
1 567 06 Conductors/insulators, set of 6LD
1 567 18 Wrapping plate for wiresLD
2 576 81 Plug-in board safety socket, 20/10LD
2 576 86 Monocell holder STE 2/50LD
1 577 28 Resistor 47 Ohm, STE 2/19LD
2 577 32 Resistor 100 Ohm, STE 2/19LD
1 577 44 Resistor 1 kOhm, STE 2/19LD
1 577 56 Resistor 10 kOhm, STE 2/19LD
1 577 82 Variable resistor 47 kOhm, STE 2/19LD
1 578 02 Photoresistor LDR 05, STE 2/19LD
1 578 05 NTC resistor 2.2 kOhm, STE 2/19LD
1 578 07 PTC resistor 100 Ohm, STE 2/19LD
2 579 05 Lamp holder E10, lateral, STE 2/19LD
1 579 13 Toggle switch STE 2/19LD
2 579 331 Plug-in holder STELD
1 579 333 Contact stripLD
2 582 81 Change-over switch STE 4/50LD
1 591 51 Flat trough/electrolysis cellLD
2 591 531 Plate electrode copper 76 x 40 mmLD
1 591 541 Plate electrode zinc 76 x 40 mmLD
1 591 551 Plate electrode iron 76 x 40 mmLD
1 647 002 Tray, highLD
1 664 391 GrindstoneLD
