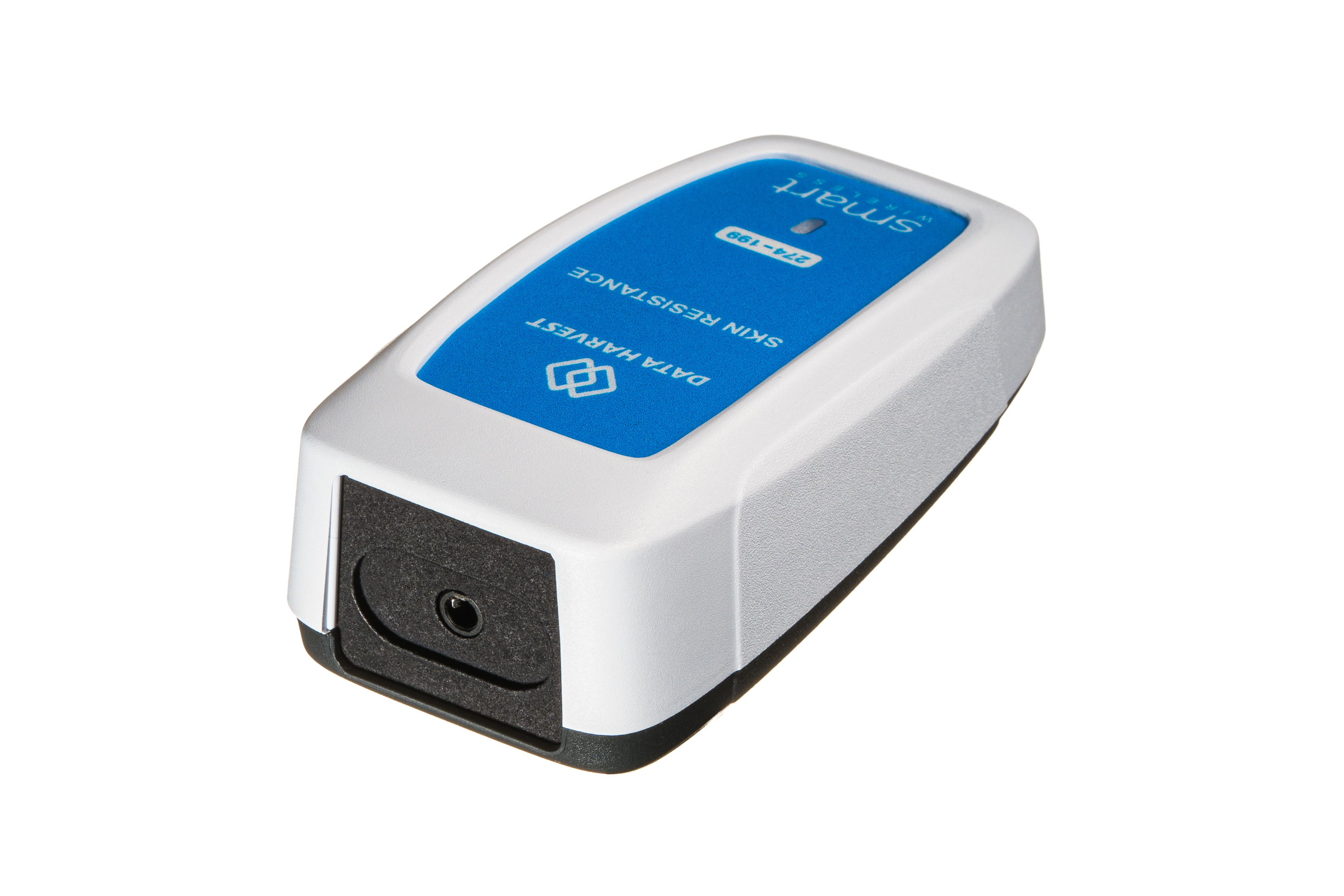

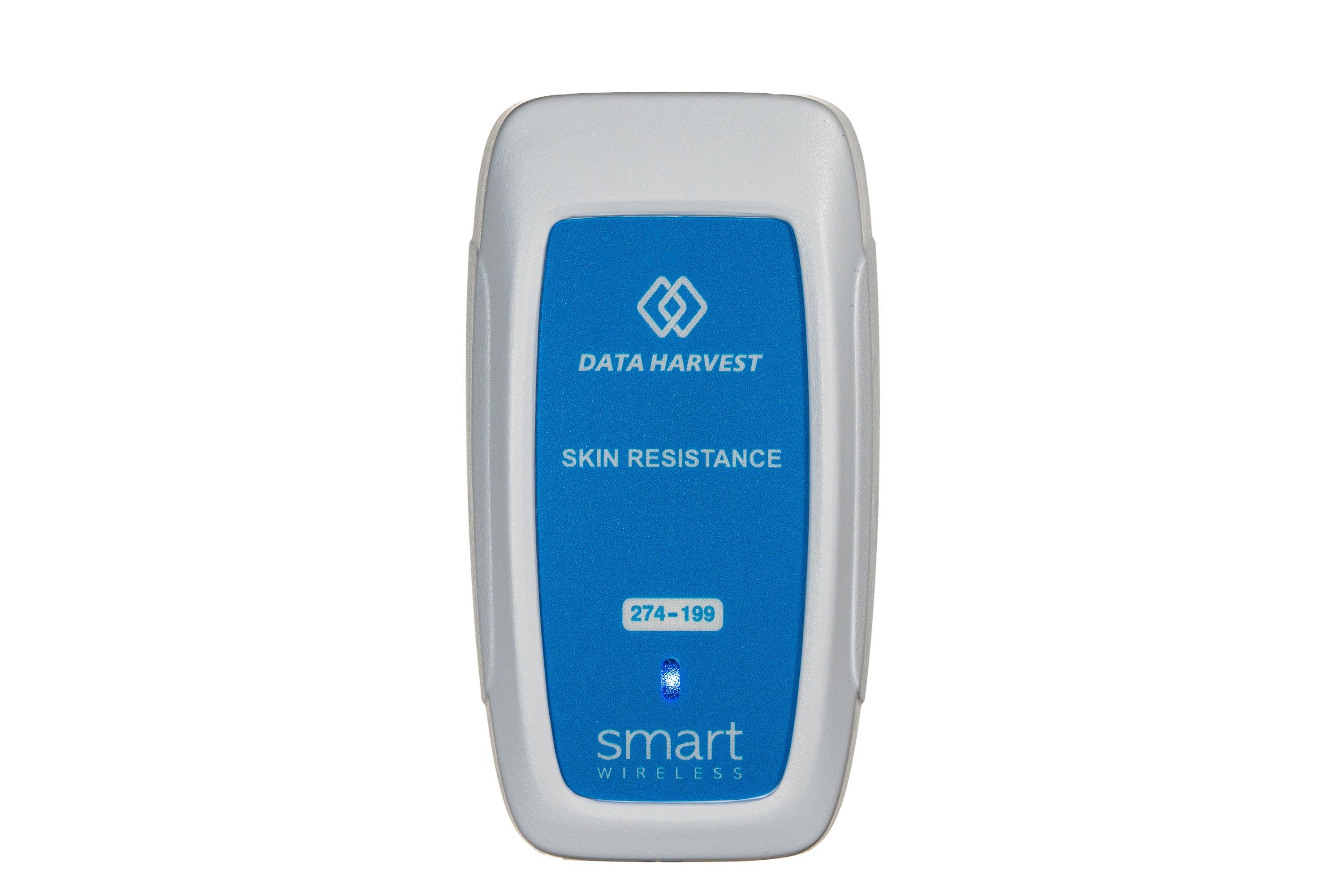

Data Harvest Wireless Skin Resistance Sensor

Data Harvest Wireless Skin Resistance Sensor

Order No: 1153



Data Harvest’s Wireless Skin Resistance Sensor measures the resistance (or conductivity) of the skin. You may wish, for example, to investigate how the skin’s conductivity changes when different demands are made upon it.

This sensor is an immensely engaging way to monitor skin performance under mild stress conditions, the so-called “Stroop effect.”



  • Extremely easy to set up

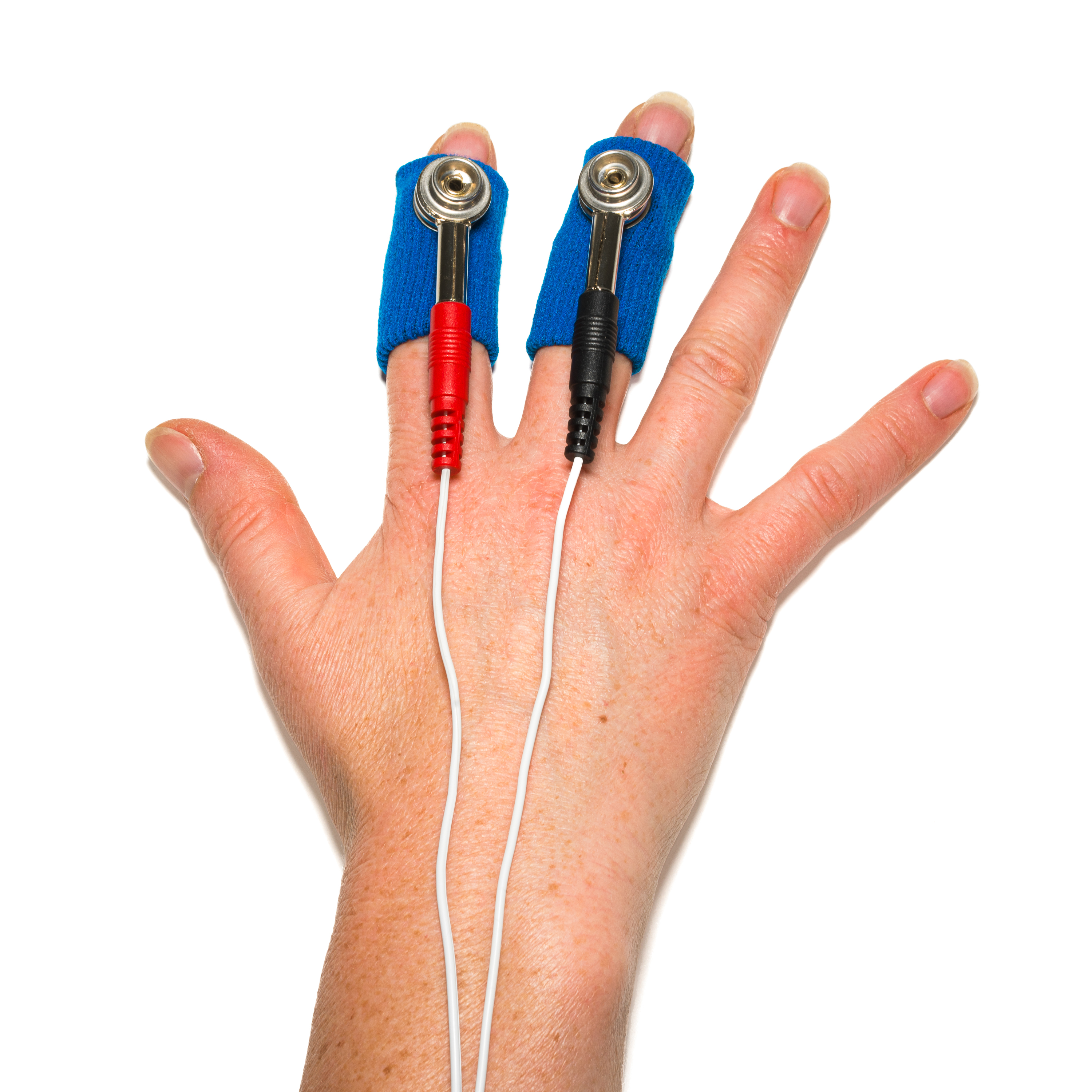

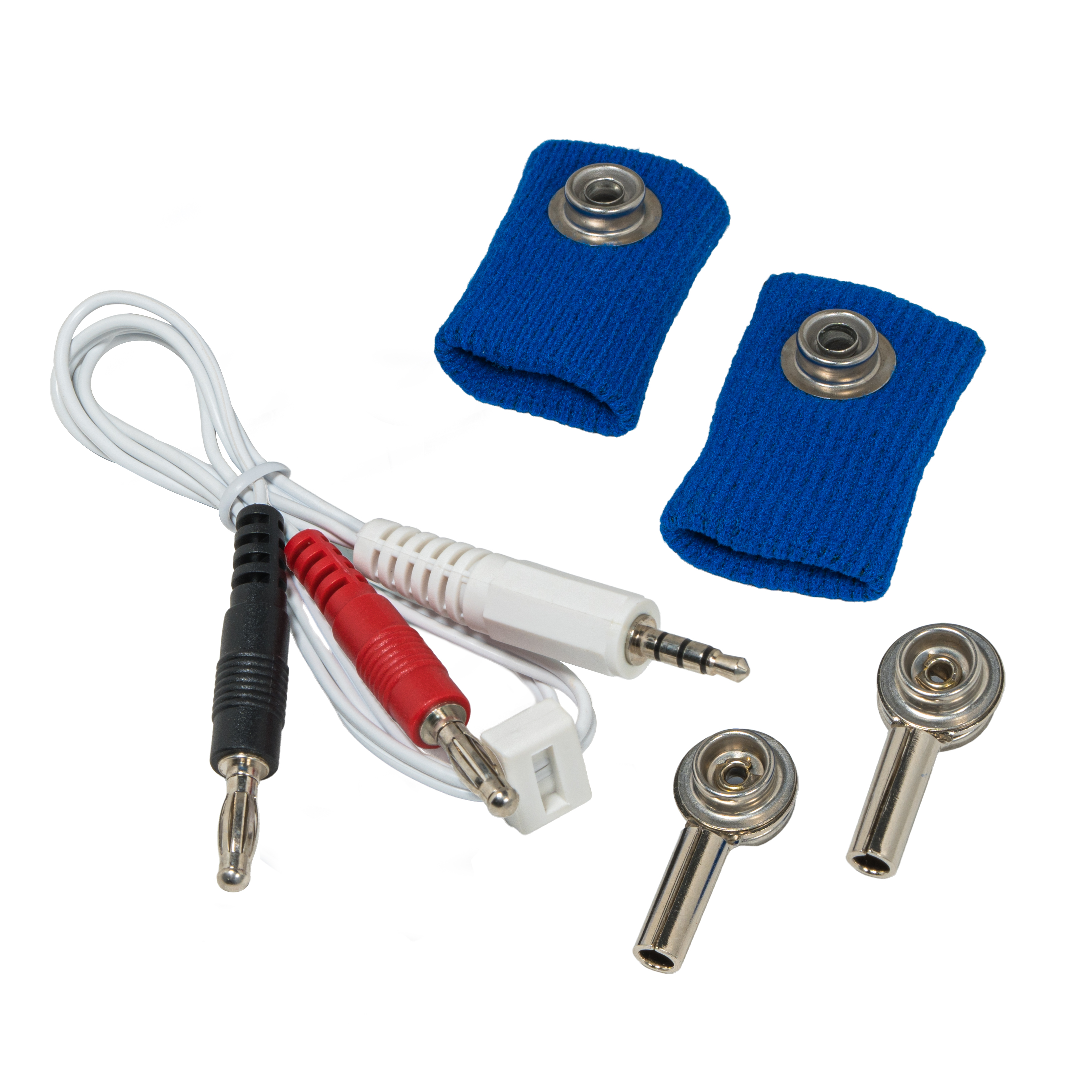

  • Convenient, yet hygienic electrodes
  • Good resolution and response
  • Can be used simultaneously with other sensors
  • Bluetooth and USB connectivity
  • Long battery life
  • Quick to use inside and outside the classroom
  • Independent logging
  • 5 Year warranty
  • Lifetime support


Features

  • Measurement Ranges: 0 to 20 μS
  • Accuracy: 1 μS
  • Resolution: ± 0.01 μS
  • Fastest logging speed: 50 samples per second [20 ms]
  • Connectivity: Wired via USB / Wireless via Bluetooth
  • Internal Battery: Rechargeable internal lithium-ion 3.7 V
  • Storage/Operating Temperature: 0 to 40 ̊C
  • Physical Specifications:
    • Weight: approx. 80 g
    • External dimensions: approx. height 33 mm x width 50 mm x length 90 mm
